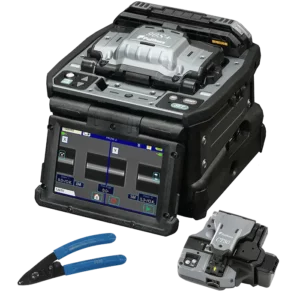

Fujikura Core Alignment Fusion Splicer 90S+ Kit

The Fujikura 90S+ is a core alignment fusion splicer, setting a new standard in the market for fusion splicing. The 90S+ is packed with a whole host of new and enhanced features, specifically developed to enable faster splice cycle times with higher precision. Advanced image processing technology. Fiber discrimination function.
  • The faster automated features.

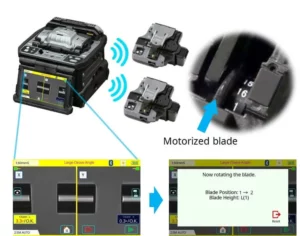

  • The tool can connect two cleavers simultaneously.

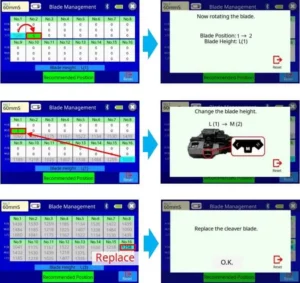

  • Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
  • Battery life increased up to 500 recharge cycles. Increased electrode lifetime – up to 5000 splicing cycles with one set.
Fujikura 90S+ Kit specifications:
  • Splicing time: 7-9 sec (SM FAST mode).
  • Heat time: 13-15 sec (for 60 mm sleeves).
  • The faster automated features.
  • Easy fiber protection sleeve positioning.
  • The sheath clamp is compatible with loose tube fiber.
  • Preinstalled operation manual.
  • Battery life increased up to 500 recharge cycles.
  • Increased electrode lifetime – up to 5000 splicing cycles with one set.
  • Dimensions: 170 × 173 × 150 mm.
  • Weight: 2.8 kg (with battery).
  • Package Contents
  • Fusion Splicer Fujikura 90S+ — 1 pc.
  • Battery (BTR-15) — 1 pc.
  • AC Adaptor (ADC-20) — 1 pc.
  • AC Power Cord (ACC-14, 15, 16 or 17) — 1 pc.
  • USB Cable (USB-01) — 1 pc.
  • Fusion Splicer Strap (ST-02) — 1 pc.
  • Spare Electrodes (ELCT-16B) — 1 set.
  • Fiber Holder Set Plate (SP-03) — 1 set.

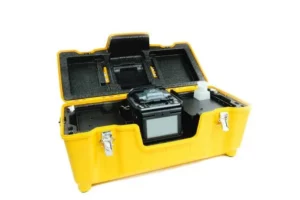

  • Carrying Case (CC-39) — 1 pc.
  • Work Trays:
    • Left (WT-09L) — 1 pc
    • Right (WT-09R) — 1 pc.
    • J-Plate (JP-09) — 1 pc.
  • Tripod Screw (TS-03) — 1 pc.
  • Carrying Case Strap (ST-03) — 1 pc.
  • Alcohol Dispenser (AP-02) — 1 pc.
  • Quick Reference Guide (QRG-02-E, C or J) — 1 pc.
  • Single Fiber Stripper (SS-03 or SS-01) — 1 pc.
