Fujikura Clad Alignment Fusion Splicer 41S+ Kit

Enhanced Splice Quality - The graphs below show the number of cleaves on the horizontal line with frequency of large cleave angle, bad cleave shape and failure to cleave. When the frequency of large cleave angle or other cleave problems increases, Active Blade Management Technology can detect this increasing ratio of poor cleaves and rotate the blade position automatically. Active Blade Management Technology therefore significantly reduces the frequency of poor quality cleaves. Even when a poor cleave is detected, the 41S+ compensates by using Active Fusion Control Technology to apply optimized fusion to reduce the incidence of high splice loss. By using these 2 key technologies together, the 41S+ minimizes the occurrence of high splice loss and greatly reduces the need for rework and re-splicing.

The 41S+ is now equipped with “ACTIVE FUSION CONTROL TECHNOLOGY” and “ACTIVE BLADE MANAGEMENT TECHNOLOGY” to maintain consistent low loss splicing results.
These two technologies, allow customers to achieve more stable low-loss splicing, reducing the need for rework and re-splicing.

  1. Active Fusion control by cleave condition – One of main causes of high splice loss is bad cleave end face quality. The 41S+ analyzes the condition of both L and R cleave end faces and applies optimal fusion control. This new technology improves splice loss significantly and greatly reduces needs for rework.

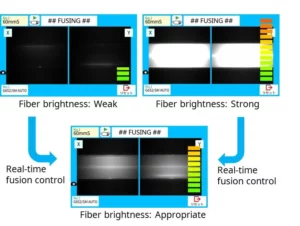

  2. Active Fusion control by fiber brightness – Fusion is easily affected by changes in the environment. The 41S+ uses real-time fusion parameter control by analyzing the fiber brightness intensity during splicing. This contributes to stable, low-loss splice results.

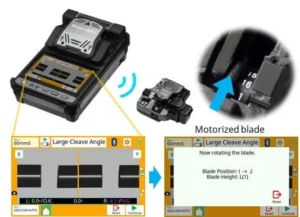

  3. Active Blade rotation by motor – The 41S+ and CT50 fiber cleaver are equipped with wireless data connectivity. This capability allows automatic cleaver blade rotation when the 41S+ judges the blade is worn.
  4. Active Blade life management – The 41S+ displays the remaining blade life and informs the user when a blade height change, blade position change, or new blade is required.
