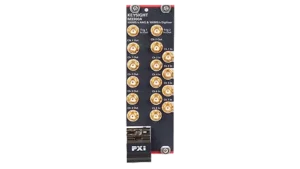

Keysight M3300A PXIe AWG and Digitizer Combination, 500 MSa/s, 16 bit and 100 MSa/s, 14 bit

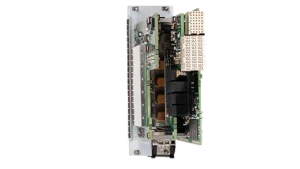

Keysight's M3300A PXIe AWG/digitizer combines the M3201A AWG with the M3100A digitizer in a two-slot PXIe card with a shared, on-board FPGA. Input to output latency as low as 400 ns. The M3300A PXIe arbitrary waveform generator (AWG)/digitizer is ideal for control, testing, and prototyping in experimental physics, communications, or medical imaging applications. The shared FPGA enables less than 400 ns latency between input to output. The optional real-time sequencing, inter-module synchronization, and graphical FPGA programming software tools expand its capability to enable applications such as experimental physics, quantum computing and quantum optics research, ATE, and other applications requiring multi-channel coherent signals. Performance characteristics Combines high-performance arbitrary waveform generator channels and digitizer channels in a 2-slot PXIe: AWG: 500 MSa/s, 16 bit, 200 MHz bandwidth - includes function generation (sinusoidal, triangular, square, DC) and phase, frequency, and amplitude modulation capability Digitizer: 100 MSa/s, 14 bit, 100 MHz bandwidth - includes advanced data acquisition system with flexible triggering and programmable cycles and data bursts Realize multi-instrument programming, which is enabled using the KS2201A PathWave Test Sync Executive programming environment Create programs and designs of logic, control, and combinatorial routines to the M3xxxA instrument with PathWave FPGA Design Environment (KF9000A), supported by SD1 3.x software
