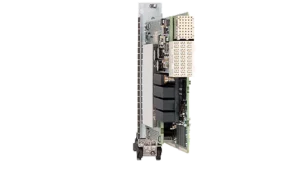

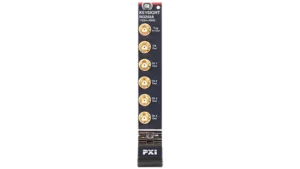

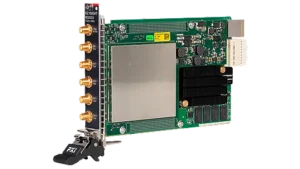

Keysight M3202A PXIe Arbitrary Waveform Generator, 1 GSa/s, 14 bit, 400 MHz

---

Keysight's M3202A PXIe arbitrary waveform generator offers 4 channels, on-board FPGA with optional software tools that enable real-time sequencing, inter-module synchronization, and graphical FPGA design environment. The M3202A PXIe arbitrary waveform generator is ideal for general purpose AWG automated test requirements, Quantum Computing, and massive MIMO research. It offers high channel density with high-quality output with low phase noise. The optional real-time sequencing, inter-module synchronization, and graphical FPGA programming software tools expand its capability to enable applications such as Quantum Computing research, 5G, wireless device manufacturing, ATE, MIMO, beamforming, and other multi-channel coherent signal generation. Performance Characteristics Produce high-quality output signal with low phase noise Includes function generation (sinusoidal, triangular, square, DC) and phase, frequency, and amplitude modulation capability Realize multi-instrument programming, which is enabled using the KS2201A PathWave Test Sync Executive programming environment Create programs and designs of logic, control, and combinatorial routines to the M3xxxA instrument with PathWave FPGA Design Environment (KF9000A), supported by SD1 3.x software

• Downloads
• Keysight-datasheet-M3202A PXIe Arbitrary Wavefor Generator with Optional Real-Time Sequencing and FPGA Programming
