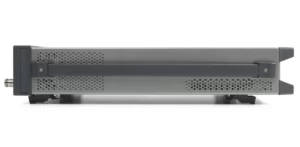

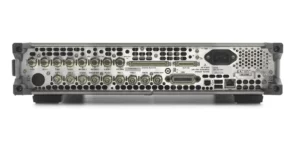

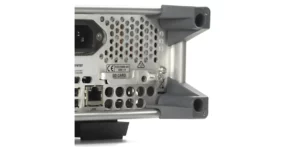

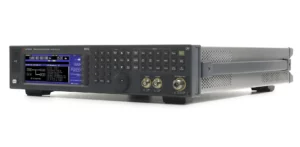

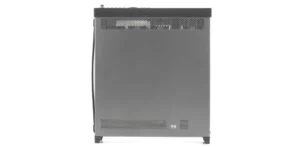

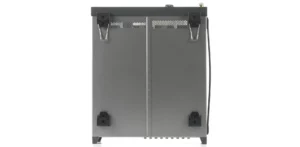

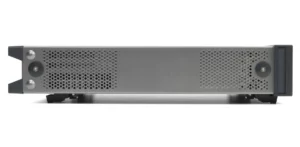

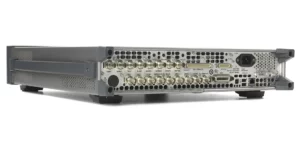

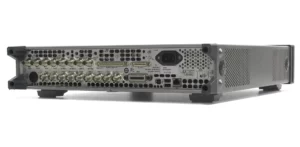

Keysight N5182B MXG X-Series RF Vector Signal Generator, 9 kHz to 6 GHz


N5182B MXG X-Series RF vector high performance signal generators are fine-tuned to be your “golden transmitter” in R&D with 9 kHz to 6 GHz frequency coverage. Simulate real-world signals with real-time capabilities with Signal Studio software.
HIGHLIGHTS
9 kHz - 3 GHz MXG Vector High-Performance Signal Generator The Keysight N5182B analog and vector MXG and EXG signal generators deliver unmatched performance in five key categories: phase noise and spectral purity, bandwidth, EVM, ACPR, and output power. Perform advanced receiver testing compatible with the latest standards using the MXG or EXG and Signal Studio software: define signal parameters, transfer them to the instrument, and use closed-loop or interactive control during signal generation.
  • Take your designs to their limit with outstanding hardware performance, including unmatched phase noise and spurious characteristics.
  • Drive power amplifiers and characterize nonlinear behavior with industry-leading adjacent channel power ratio (ACPR) and output power.
  • Test wideband devices with factory-equalized 160 MHz RF bandwidth.
  • Reduce the time spent on signal creation with PathWave Signal Generation software, including LTE, WLAN, and GNSS.
  • Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance.
Key specifications
  • Frequency ranges:  9 kHz to 6 GHz
  • Phase noise at 1 GHz, 20 kHz offset:  –146 dBc/Hz
  • Spurious at 1 GHz (nonharmonics) : –96 dBc
  • Output power at 1 GHz: +27 dBm
  • ACPR (vector) W-CDMA 64 DPCH: –73 dBc
  • EVM (vector) 802.11ac/LTE: 0.4 percent
  • Bandwidth (vector): 160 MHz
  • Arbitrary waveform memory (vector):  1024 MSa
What's included:
  • standard phase noise
  • standard output power, +18 dBm
  • electronic attenuator
  • CW signal generation
  • vector (I/Q) modulator
  • 50-W reverse power protection
  • country-specific power cord
  • documentation set (CD-ROM)
