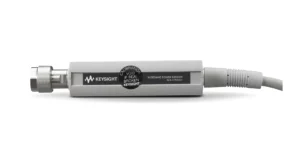

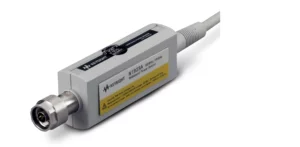

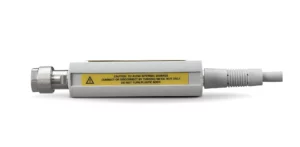

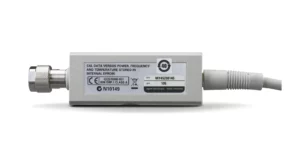

Keysight N1923A Wideband Power Sensor, 50 MHz to 18 GHz


The Keysight N1923A peak power sensor provides peak, peak-to-average ratio, average power, rise time, fall time, maximum power, minimum power and statistical data of peak signals.
  • Zero and calibrate while connected to the DUT
  • -35 dBm to +20 dBm wide dynamic range for peak power measurements
  • Calibration factors, linearity, temperature, and bandwidth correction data stored in EEPROM
  • Precision N-type connector as standard
  • Sensor cable fixed to sensor. Available cable lengths are 1.5m (5ft)and 3m (10ft)
The N192XA sensors are the first to provide internal zero and calibration by integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time, and measurement uncertainty.
