Megger MIT400/2 series

CAT IV insulation testers for electrical and industrial maintenance engineers

Insulation testing up to 1000 V and 200 GΩ range
Stabilised insulation test voltage (New)
Single range, faster continuity testing from 0.01 Ω to 1 MΩ (New)
600 V Trms AC and DC voltage measurement
Live circuit detection and protection
User variable insulation test voltage from 100V to 1000V (New) depending on model
Test result storage and Bluetooth® downloading depending on model
Rechargeable options for mains and car charging (New)depending on model
CAT IV 600 V & IP54

The MIT400 mk2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc. Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.

Downloads
Data sheet MIT400 2 series

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application specific test voltages are required that do not appear in the standard ranges.

Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

The range consists of four instruments:
MIT400/2            250 V, 500 V and 1000 V

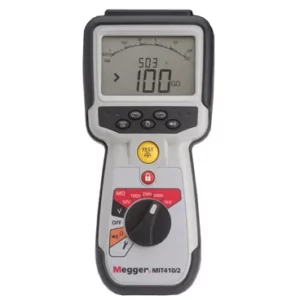

MIT410/2            50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation Index, Dielectric Absorption Ratio

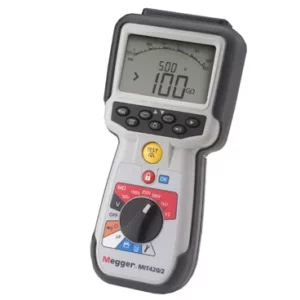

MIT420/2            50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and result storage

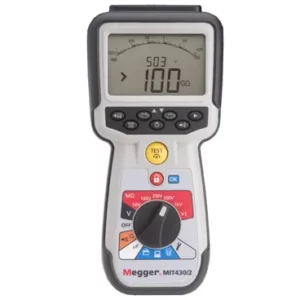

MIT430/2            50 V, 100 V, 250 V, 500 V and 1000 V +Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and Bluetooth download
