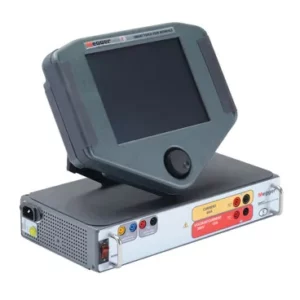

Megger SMRT1

---

Small, rugged, lightweight and powerful Operate with or without a computer Intuitive manual operation with Smart Touch View Interface High current, high power (75 Amps/400 VA rms) Network interface provides IEC 61850 test capabilities Fully automated testing using RTMS software As a stand-alone unit the SMRT1 has the “smart” combination of high compliance voltage and high current to test electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and directional overcurrent; test under/over voltage, single-phase impedance, single-phase power, directional, synchronizing, auto-synchronizing, negative sequence under/over voltage, current balance, frequency, volts/hertz, reclosing, thermal, and various other relays, see the Applications Guide for more. The SMRT1 test system has the ability to be manually controlled with Megger‘s new Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays. The STVI eliminates the need for a computer when testing virtually all types of relays. Menu screens and touch screen function buttons are provided to quickly and easily select the desired test function. Tests results can be saved to the PowerDB™ ONBOARD for download to a memory stick to transfer or print test reports. For full automatic testing the SMRT1 may be controlled using Relay Test Management Software (RTMS). RTMS is a Microsoft® Windows® XP® Service Pack 3/Vista™/7/8/10 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT.
