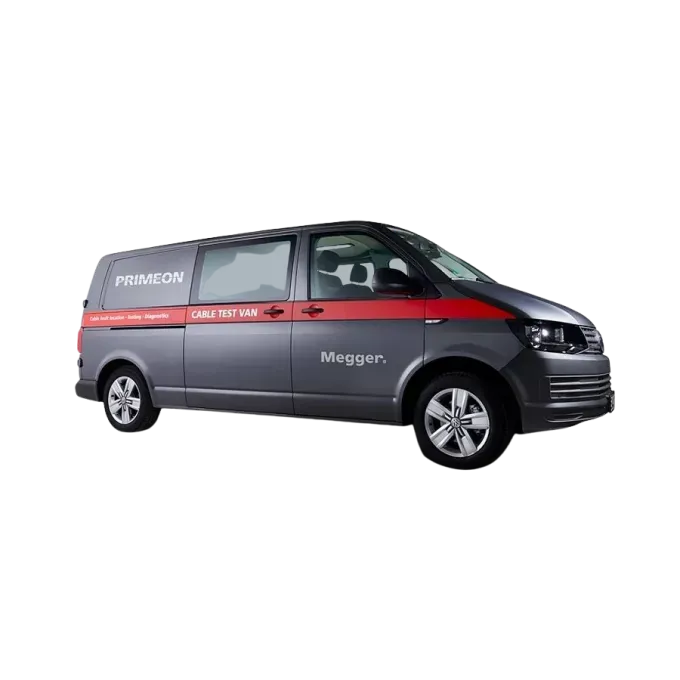

Megger PRIMEON

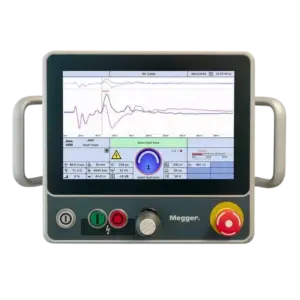

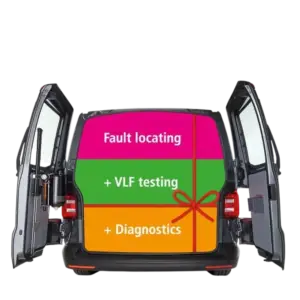

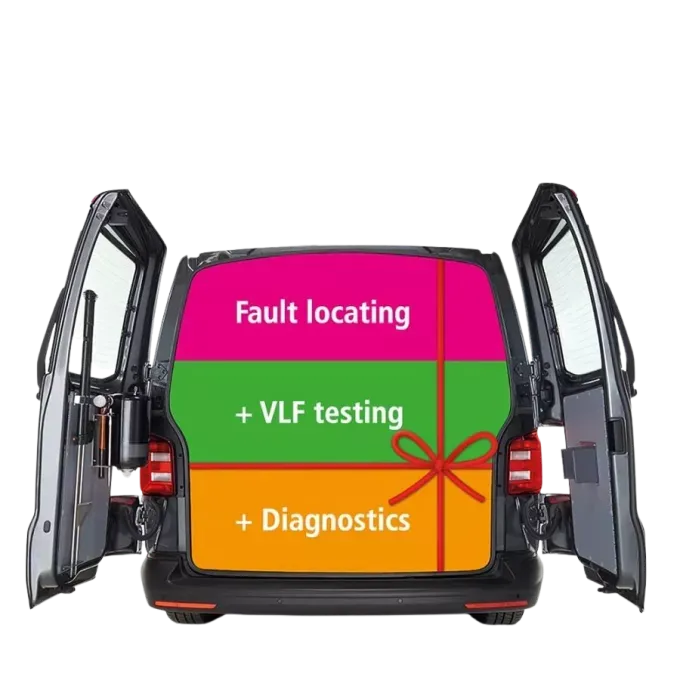

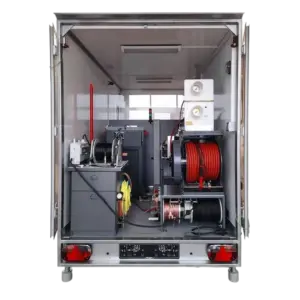

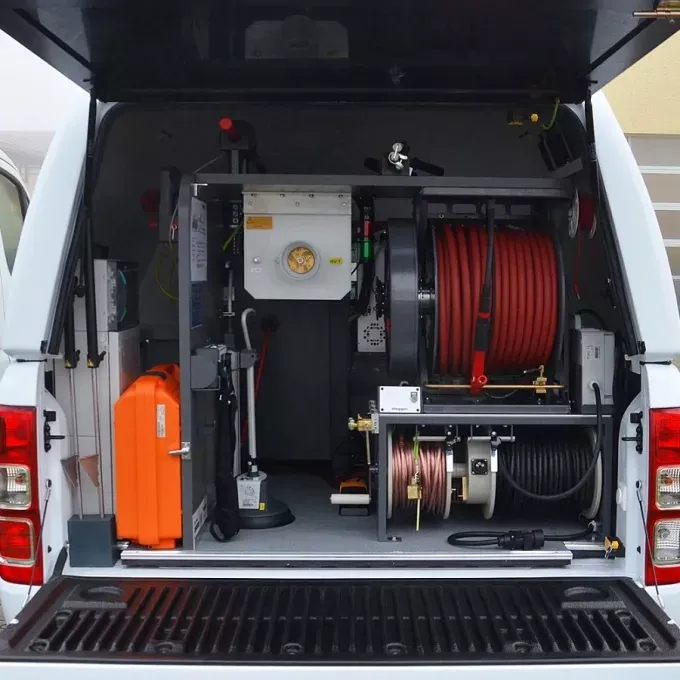

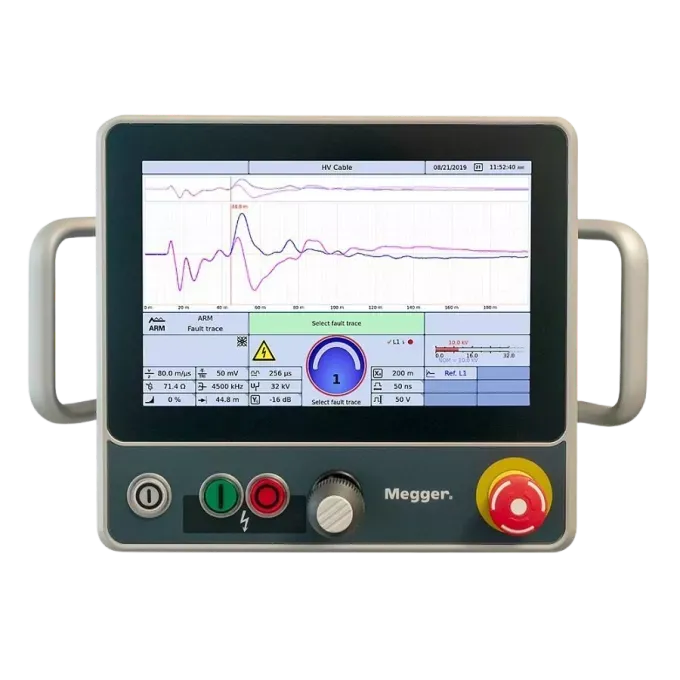

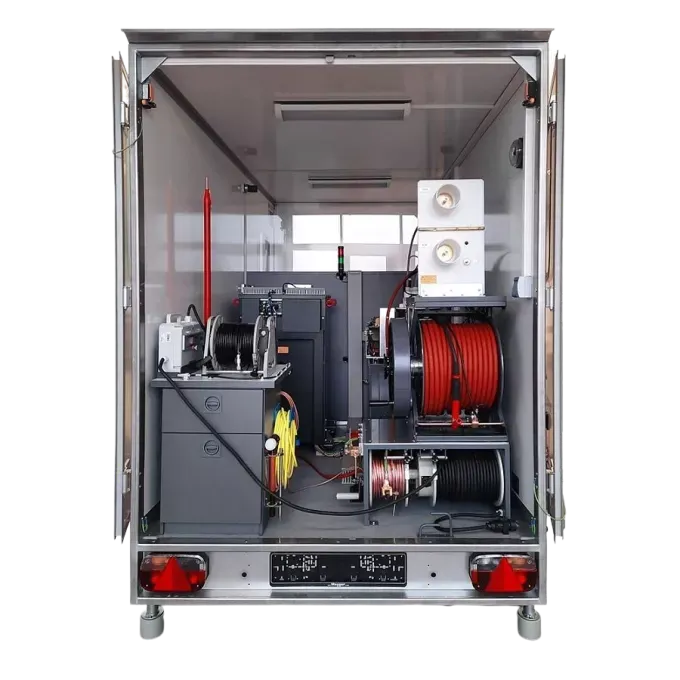

Centrally controlled and automated cable fault location and cable testing system. The PRIMEON test van system sets a new benchmark in advanced technology. It offers a comprehensive solution for locating cable faults and can be configured with VLF testing and diagnostic capabilities. PRIMEON integrates a built-in Teleflex® RDR radar for time domain reflectometry, an insulation testing module, a powerful high-voltage DC source, a multi-stage surge wave generator (thumper) compatible with the digiPHONE +2 for pinpoint accuracy, a high-frequency burner for fault conversion, and a range of industry-standard radar and transient prelocation methods. All functions are controlled from a single, centralized unit featuring a user-friendly graphical interface. 7 individual technologies in one system PRIMEON is a fault locating powerhouse and offers 7 individual technologies for successfully finding faults:
  • Insulation resistance testing
  • Time domain reflectometry (cable radar / TDR)
  • HV DC testing (DC hipot)
  • Fault conversion (burning)
  • Integrated HV prelocation methods
  • Magnetic-acoustic pinpointing via surging/ thumping in multiple voltage ranges
  • Sheath testing and sheath fault pinpointing
