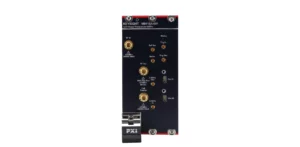

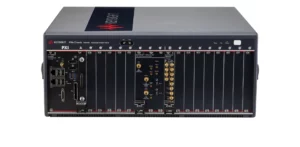

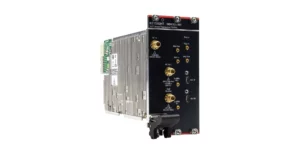

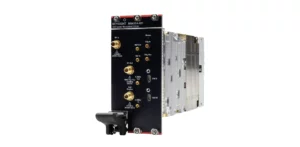

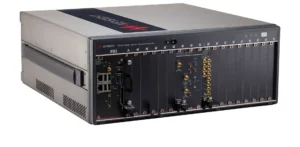

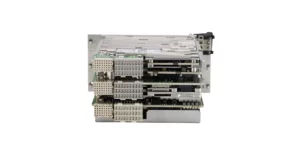

Keysight M9415A VXT PXI Vector Transceiver, 380 MHz to 6/8/12 GHz

The Keysight M9415A VXT PXIe vector transceiver integrates a VSG and a VSA from 380 MHz to 6, 8, or 12 GHz in a 3-slot PXIe module with up to 1.2 GHz bandwidth.
Highlights
  • Integrated a vector signal generator and a vector signal analyzer up to 12 GHz in a 3-slot PXIe module
  • Built-in 1.2 GHz signal generation and analysis bandwidth
  • High output power up to >+20 dBm
  • Amplitude accuracy <±0.5 dB for both generator and analyzer
  • Excellent SSB phase noise <-130 dBc/Hz at 1 GHz (10 kHz offset)
  • <0.3 % EVM of 100 MHz bandwidth OFDM signal for accurate 5G test
  • Extend frequency range to mmW (FR2) with S9130A 5G Performance Multi-Band Vector Transceiver
