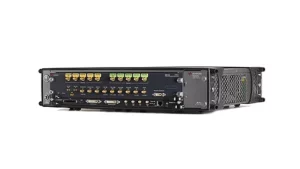

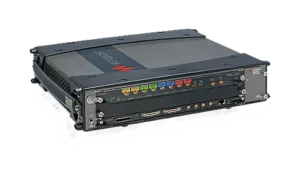

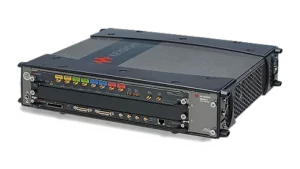

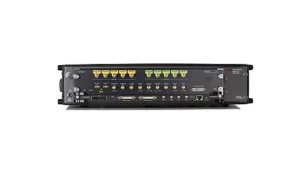

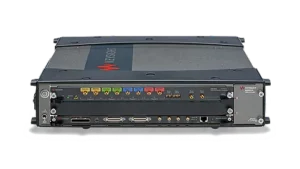

Keysight M8190A 12 GSa/s Arbitrary Waveform Generator

---

Keysight's M8190A - A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously Precision AWG with two DAC settings 14-bit resolution up to 8 GSa/s 12-bit resolution up to 12 GSa/s High-speed arbitrary waveform generators Variable sample rate from 125 MSa/s to 8 / 12 GSa/s Spurious-free-dynamic range (SFDR) up to 90 dBc typical Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing Analog bandwidth up to 5GHz Unique Performance – Unique Value Up to 90 dBc SFDR - Tones clearly stand out of noise (Even with thousands of tones) 2 GSa memory per channel - Realistic signal scenarios with long play time 5 GHz analog bandwidth - Mimic analog imperfections with custom ISI Key applications Radar, Satellite, Electronic Warfare, Multilevel Signals ADC testing (Analog Digital Converter testing), Jitter Margin Testing Digital Video, Noise Power Ratio Measurement, Wireless HD, HDMI, MHL IEEE 802.11ad, CaTV, OFDM, Software Defined Radio Enhance your reality - with the M8190A 12 GSa/s Arbitrary Waveform Generator From low-observable systems to high-density comms, testing is more realistic with precision arbitrary waveform generation. Now you can take reality to the extreme: A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously. This unique combination lets you create signal scenarios that push your design to the limit and bring new insight to your analysis. Get bits and bandwidth – and enhance your reality. The M8190A AWG works with all leading software platforms MATLAB software, BenchLink Waveform Builder Pro Software , Wideband Waveform Center for wideband modulation in 60 GHz wireless communications and more.

• Downloads
• Keysight-datasheet-M8190A Arbitrary Waveform Generator 12 GSas Arbitrary Waveform Generato
