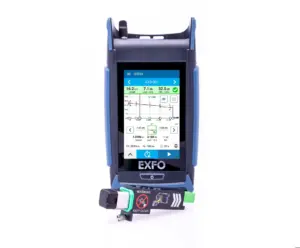

EXFO AXS-120 - Last-mile/Access mini-OTDR


Mini yet mighty, the AXS-120 brings EXFO’s renowned OTDR accuracy, reliability and durability to the field in a compact form factor. Key features
  • Icon-based view with optical link mapper (OLM), simplifying OTDR trace interpretation
  • Automated macrobend detection
  • Optimized display of test results (single-screen summary)
  • Integrated testing essentials: VFL, inline light source and power checker

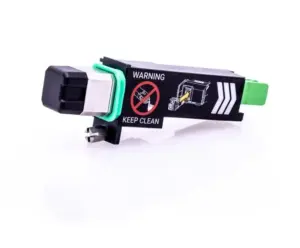

  • Swap-Out connectors: patented field-replaceable connectors
  • 3-year warranty

Optical link mapper (OLM)

Automatic analysis of multiple wavelengths with a consolidated icon-based link view:

  • Synced with events and placed on the same screen below the OTDR trace to better explain and understand events.
  • Display of end-to-end link length, loss and ORL according to the pass/fail settings.
  • Automatic parameter settings and clear go/no-go results.

Optimized display

See key results, test parameters, OTDR trace, linear view of events and the OLM—summarized on a single screen. GUI and touchscreen optimized for landscape or portrait viewing, zooming or editing.

Connectivity

Store and share test results via the cloud capabilities of EXFO Exchange, which streamlines workflows, automates reporting and ensures compliance. Connect to phone via Bluetooth or Wi-Fi for faster .SOR file transfer and for software updates.

Integrated testing essentials

In-line light source and in-line power checker on the same OTDR port, and a visual fault locator (VFL).
