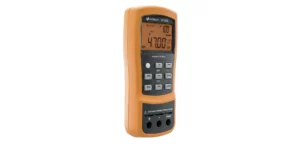

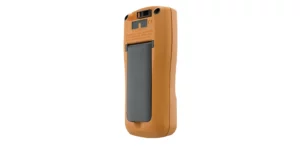

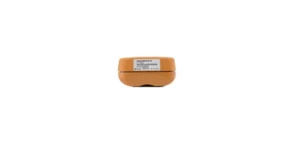

Keysight U1733C 100Hz/120Hz/1kHz/10kHz/100kHz Handheld LCR Meter


100Hz/120Hz/1kHz/10kHz/100kHz Handheld LCR Meter
HIGHLIGHTS
  • 20,000 counts resolution
  • 0.2% accuracy
  • Wide LCR ranges with 5 selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, and 100kHz)
  • Auto identification (Ai) automatically determines and displays component type and measurements
  • Detailed component analysis with DCR, ESR, Z, D, Q, Ө functions
  • Battery life of 16 hours/Ac-powered
  • IR-to-USB connectivity for data logging to PC
Now you can measure at frequencies as high as 100 kHz, a capability that is typically found only in benchtop meters. Auto identification conveniently displays component type and detailed component analysis such as Z, ESR, DCR, so you can get measurements done faster. Better yet, the battery lasts up to 16 hours, ideal for testing on the go. With the U1730 Series, you can perform quick, basic LCR measurements at your convenience, without burning a hole in your pocket.
