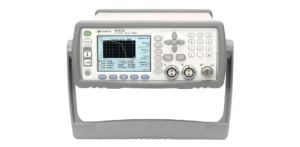

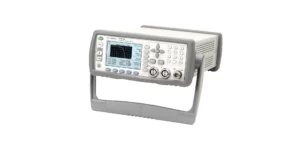

Keysight N1912A P-Series Dual Channel Power Meter

The Keysight N1912A P-Series dual channel power meter provides peak, peak-to-average ratio, average power, rise time, fall time NS Pulse width measurements

30 MHz video bandwidth
Single shot real time capture at 100 Msample/s per second
Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
22 Predefined formats: WiMAX, DME, HSDPA, etc.
One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
Internal Zeroing and Calibration while connecting to the DUT
A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.

When used with the N192XA wideband power sensors, the N1911/12A P-Series power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.

LXI-C Compliance
Average triggering for average power measurement
Versatile connectivity with USB, LAN and GPIB standard
High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
Compatibility with E932x power sensors
Difference and ratio math functions : (A-B, B-A, A/B and B/A)
2-year calibration cycle

Easy measurement with Software Downloads The N1911A/12A P-series power meters are supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform complex pulse analysis and standard average power measurement.
