Fluke 87V MAX True-rms Digital Multimeter


Key features

  • Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
  • Waterproof, dustproof IP67 case for the most extreme work sites

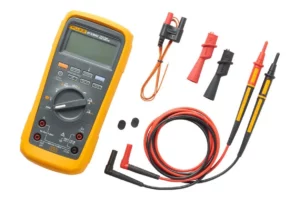

  • Premium TL175 TwistGuard™ test leads
  • Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments

The 87V MAX contains all the trusted features of the most popular digital multimeter used today, the Fluke 87V, and then some. From wet, dusty or dark environments to long days, the 87V MAX was designed to help you finish the most on a work site. It features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment; using true-rms ac voltage and current for accurate measurements on non-linear signals.

Fluke’s most rugged digital multimeter

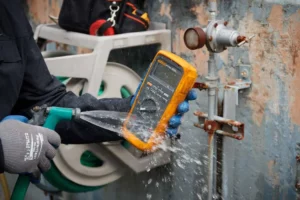

The 87V MAX is built with an IP67 rated, industrial-strength case and a removable holster. The holster doubles as a test probe holder for easier, one-handed operation. This meter is fully waterproof and dust proof keep working reliably no matter where your job takes you.

4-meter Drop tested

  • Industrial-strength is no joke, the meter is designed to survive drops up to 4-meters (13 feet).

Withstands hot and cold environments

  • Rely on accurate measurements with the extended operating temperature range of -40 °C (for up to 20 minutes) to +55 °C.

Easy-to-read measurements

The large display digits and 2-level bright, white backlight and backlit keypad buttons make for increased visibility. Along with the high resolution 19,999 count display mode allows you to read measurements easily in any work environment. This multimeter will run for up to 800 hours of battery life and offers measurement capabilities

  • up to 1000 V ac and dc and up to 10 A (20 A for 30 seconds),
  • frequency to 200 kHz
  • min/max/average recording, plus 250 μs Peak min-max to capture variations automatically or
  • use the built-in thermometer.

Comparison – 87V MAX and 87V

 87V MAX87 V
IP RatingIP 67IP 30
Battery life800 hours400 hours
Drop test4 meters3 meters
Backlit keypadYesNo
TwistGuard™ test leadsYesNo
True-rms readingsacac
Basic dc accuracy0.05%0.05%
Voltage ac/dc1000 V1000 V
Current ac/dc10 A10 A
Resistance50 MΩ50 MΩ
EN61010-1 CAT III1000 V1000 V
EN61010-1 CAT IV600 V600 V
Warranty (years)Limited lifetimeLimited lifetime
