EXFO EX10 - Multigigabit residential & business services tester`
EX10 – Multigigabit residential and business services tester that validates up to 10 Gigabit Ethernet speeds (1G/2.5G/5G/10G), GPON/XGS-PON, and Wi-Fi 7 across 2.4/5/6 GHz bands. Powered by Speedtest® by Ookla®, it measures latency, throughput, and QoE with pass/fail thresholds. Supports SFP/SFP+, VLAN, DHCP, and generates detailed birth certificates in PDF, JSON, XML, or CSV.
EX10 Multigigabit Residential & Business Services Tester

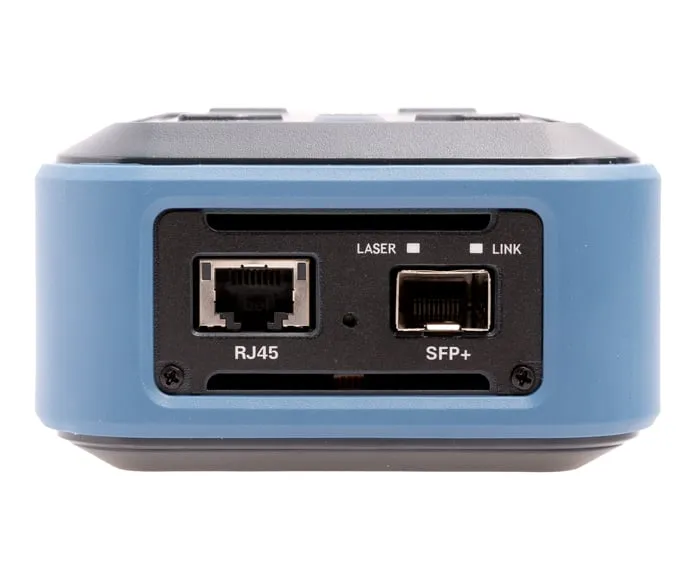

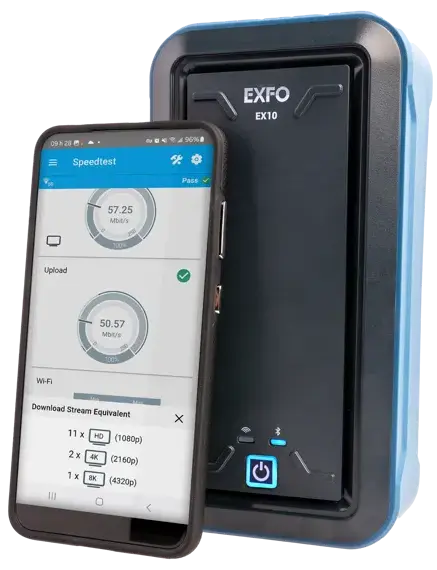

The EX10 is a handheld, smart-device-controlled tester designed for installers to validate multigigabit broadband services up to full line rate 10 Gigabit Ethernet. It supports electrical RJ45, GPON, XGS-PON, and SFP/SFP+ interfaces, and delivers accurate speed testing via Speedtest® by Ookla®. The device also tests Wi-Fi 7 (802.11ax) across 2.4 GHz, 5 GHz, and 6 GHz bands, ensuring optimal coverage and performance for HD, 4K, and 8K streaming.
Key Features
- Full 1/2.5/5/10 Gigabit Ethernet validation with adjustable SLA thresholds
- Speedtest® by Ookla® for latency, upload, and download metrics
- GPON/XGS-PON support with PON ID, ONU ID, TOL, and ODN loss measurement
- Wi-Fi 7 testing with RSSI, channel utilization, and BSSID capture
- Room-by-room Wi-Fi diagnostics and snapshot reporting
- Ping, LLDP, VLAN, Static IP, and DHCP (Option 60) support
- Birth certificate generation in JSON, XML, PDF, or CSV
- EXFO Exchange cloud integration for automated reporting and compliance
Applications
- Broadband service validation and SLA compliance
- Quality of Experience (QoE) monitoring for core services
- Wi-Fi optimization and troubleshooting
- FTTH/GPON/XGS-PON turn-up and verification
Paired with the EXFO Exchange platform, the EX10 automates test result management, boosts compliance, and provides actionable insights—making it the ideal tool for modern broadband deployments.
Product Resources
| Document Title | Download |
|---|---|
| Spec Sheet – EX10 – Multigigabit residential | Download |
