EXFO EX1 - FTTH and Business Services tester
The EX1 is the world’s smallest pocket-sized tester for FTTH and business services. Validate full-line-rate Gigabit Ethernet, emulate GPON ONT, run Ookla Speedtest, and map Wi-Fi channels—all in one rugged handheld. Deutsche Telekom ZTV-43 compliant and cloud-connected via EXFO Exchange.
Simple. Open. Carrier-grade. Multipurpose.
Key Features
- GPON ONT emulation – optical power, PON-ID, OLT authentication
- Full-line-rate Gigabit Ethernet Speedtest by Ookla
- Wi-Fi 802.11ac (2.4 & 5 GHz) with channel map & signal survey
- 140+ active L3–L7 tests (iPerf, VoIP, IPTV, HTTP, DNS…)
- Deutsche Telekom ZTV-43 workflow & thresholds built-in
- Auto PDF/CSV report upload via e-mail, WhatsApp, Skype or EXFO Connect
- Pair with Optical Explorer & FIP-435B for complete FTTH activation kit

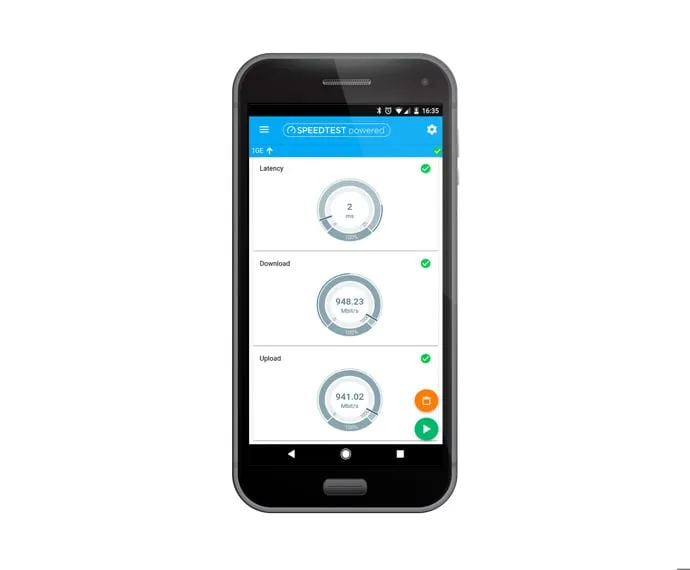

Speed Promised = Speed Delivered
Run the exact same Speedtest your subscribers use. Generate a “birth certificate” proving ordered speeds are delivered—right at service turn-up.
Faster Root-Cause Isolation
One button press tells you if the problem is in the access network or inside the customer premises (wiring, router, Wi-Fi).
Cloud-Powered Workflow
EXFO Exchange automates result storage, compliance checks, team visibility and long-term QoE analytics.
Technical Specifications

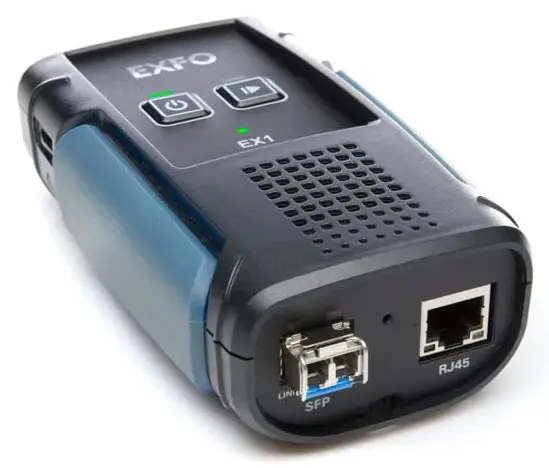

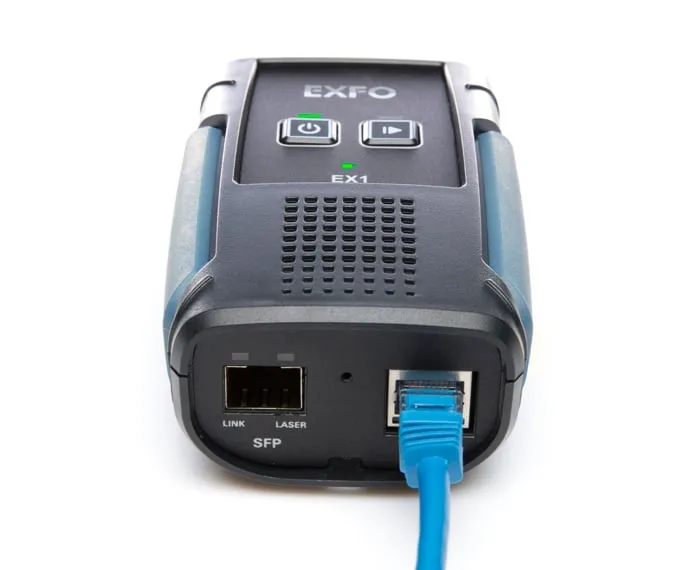

| Interfaces | RJ45 Electrical + SFP Optical |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 & 5 GHz) |
| Size | Pocket-sized handheld |
| Compliance | Deutsche Telekom ZTV-43 |
| Cloud | EXFO Exchange ready |
Included in the Box
- EX1 tester
- Li-ion battery (8 h+ autonomy)
- USB-C charger
- Soft carrying pouch
- Quick-start guide
Optional Accessories
- Optical Explorer OX1
- FIP-435B fiber inspection probe
- SFP modules (GPON, 1G, 10G)
- Hard travel case
Product Resources
| Document Title | Download |
|---|---|
| Spec Sheet - EX1 FTTH and Business Services Tester | Download |
