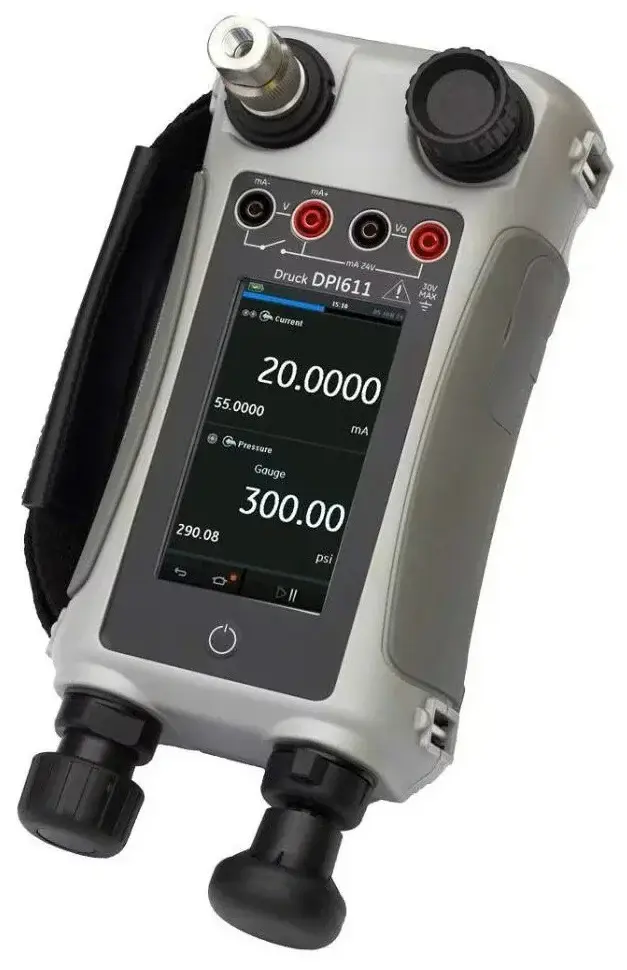

Druck DPI 611 Handheld Pressure Calibrator

The Druck DPI 611 is a compact, self-contained handheld pressure calibrator that combines pressure generation, pressure measurement, and electrical signal calibration in a single portable instrument. Designed for field calibration and maintenance, it delivers high accuracy, automated test routines, and intuitive touchscreen operation for pressure transmitters, gauges, switches, and process instruments. :contentReference[oaicite:0]{index=0}

• Self-contained pressure calibrator with built-in hand pump
• Pressure generation from 95% vacuum to 20 bar (300 psi)
• Pressure accuracy up to ±0.0185% FS
• Measures & sources mA, V and loop power
• 4.3″ color touchscreen with intuitive interface
• Automated calibration & PASS/FAIL analysis
• 8 GB internal memory with USB connectivity
• Compatible with Druck 4Sight calibration software
