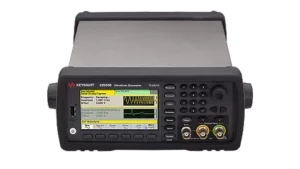

Keysight 33509B Waveform Generator, 20 MHz, 1-Channel

---

Exclusive Trueform technology Unmatched capabilities for generating a full range of signals for your most demanding measurements Sine waves with 5x lower harmonic distortion for more pure signals Pulses up to 20 MHz with 10x less jitter for more precise timing Optional point-by-point arbitrary waveform capability with sequencing for more accurate representation of user-defined signals Instrument features 160 MSa/s sampling rate for higher time resolution arbitrary waveforms 16-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy With arb upgrade 1 MSa/channel standard waveform memory, optional 16 MSa/channel for your longest waveforms USB, LAN (LXI-C), GPIB standard for quick and easy connectivity to PC or network Waveform creation and editing (with arb upgrade) Create a waveform from the front panel using the built-in editor Capture a waveform from an oscilloscope and download it to the generator Create a waveform in MATLAB, Microsoft® Excel, etc. and download it to the generator A BenchVue software license (BV0002B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences Keysight 33500B Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity, and flexibility than previous generation DDS generators. Easily generate the full range of signals you need to your devices with confidence the signal generator is outputting the signals you expect. The 33509B can be easily upgraded to 30 MHz and arbitrary waveform capabilities can be added as your needs change. NOTE: 1-channel generators cannot be upgraded to 2-channel generators.

• Downloads
• Keysight-datasheet-33500B and 33600A Series Trueform Waveform Generators
